삼성 아틱 조도센서를 이용한 LED 밝기 조정하기

메이커 2018-09-11 (화) 09:23 6년전 3713

조도센서를 이용한 LED 밝기 조정하기


본 튜토리얼의 전체 PDF는 다음의 링크에서 참고하실 수 있습니다.



https://goo.gl/JVMp9q




아두이노 IDE 사용

1.    OTG, Debug 케이블 연결 후

2.    VCC-5V, GND-GND, SIG-ADC1

3.    Putty 접속 후, 터미널에서 /root/watcher 입력

4.    아두이노에서 삼성 아틱의 COM포트 설정

5.    소스코드 업로드





#include <DebugSerial.h>

int sensorpin = 1;

void setup()

{

   DebugSerial.begin(115200);

}



void loop()

{

   DebugSerial.println(analogRead(sensorpin));

   delay(1000);

}

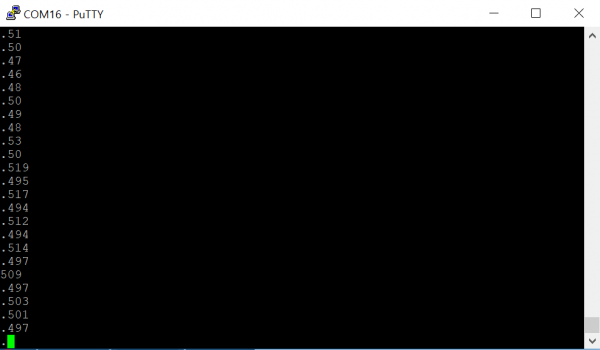

6.    Putty로 모니터링

1f7c3ee5d7e718d5cf0b1a77c77892dc_1536644




C언어 사용시






 #include <stdio.h>



#include <stdlib.h>



#include <stdbool.h>







#define HIGH            1



#define LOW 0







#define ANALOG_PIN          0 // A0



#define PWM_PIN 0







#define PERIOD 1000000







bool pwmPin(int pin, int period, int duty_cycle, int enable){



    FILE * fd;



    char fName[128];







    if(( fd = fopen("/sys/class/pwm/pwmchip0/export", "w")) == NULL) {



        printf("Error: unable to export pin\n");



        return false;



    }



    fprintf(fd, "%d\n", pin);



    fclose(fd);







    sprintf(fName, "/sys/class/pwm/pwmchip0/pwm%d/period", pin);



    if((fd = fopen(fName, "w")) == NULL) {



        printf("Error: can't open pin period\n");



        return false;



    }



    fprintf(fd, "%d\n", period);



    fclose(fd);







    sprintf(fName, "/sys/class/pwm/pwmchip0/pwm%d/duty_cycle", pin);



    if((fd = fopen(fName, "w")) == NULL) {



        printf("Error: can't open pin duty_cycle\n");



        return false;



    }



    fprintf(fd, "%d\n", duty_cycle);



    fclose(fd);







    sprintf(fName, "/sys/class/pwm/pwmchip0/pwm%d/enable", pin);



    if((fd = fopen(fName, "w")) == NULL) {



        printf("Error: can't open pin enable\n");



        return false;



    }



    if(enable == HIGH) {



        fprintf(fd, "1\n");



    }



    else {



        fprintf(fd, "0\n");



    }



    fclose(fd);







    return true;



}







int analogRead(int pin) {



           FILE * fd;



           char fName[64];



           char val[8];







           // open value file



           sprintf(fName, "/sys/devices/12c0000.adc/iio:device0/in_voltage%d_raw", pin);







           if((fd = fopen(fName, "r")) == NULL) {



                       printf("Error: can't open analog voltage value\n");



                       return 0;



           }







           fgets(val, 8, fd);



           fclose(fd);







           return atoi(val);



}







int Con_duty(int duty) {



           pwmPin(PWM_PIN, PERIOD, duty, 1);



}







int main(void)



{



    long SenVal = 0;







    while(1)



    {



        SenVal = analogRead(ANALOG_PIN);



        printf("val : %d\n", SenVal);







                       if (SenVal > 500) Con_duty(100000); // LED ON



                       else if (SenVal <= 500) Con_duty(0); // LED OFF



                       sleep(1);



    }



           return 0;



}

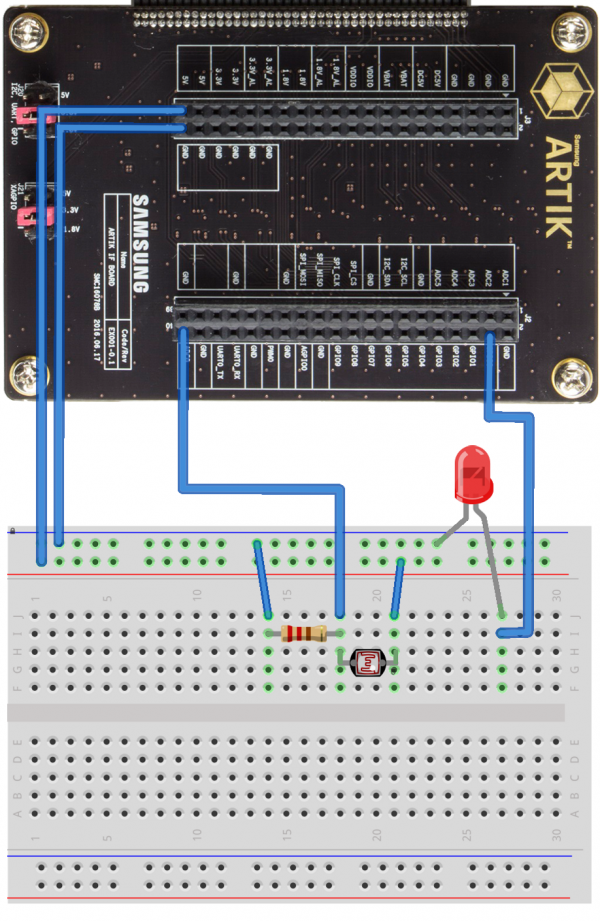

파이썬 사용시



1f7c3ee5d7e718d5cf0b1a77c77892dc_1536644





 from time import sleep



OUTPUT = 'out'

INPUT = 'in'

HIGH = 1

LOW = 0



def export(pin):

    try:

        exp = open('/sys/class/gpio/export','wb',0)

        exp.write(str(pin))

        print('Registion Successful: pin%d' %pin)

    except IOError as e:

        print('Error: %d - %s' %(e.errno,e.strerror))



def unexport(pin):

    try:

        uexp = open('/sys/class/gpio/unexport','wb',0)

        uexp.write(str(pin))

        print('Unregistion Successful: pin%d' %pin)

        uexp.close()

    except IOError as e:

        print('Error: %d - %s' %(e.errno,e.strerror))



def pinMode(pin, mode):

    try:

        direction = open('/sys/class/gpio/gpio%d/direction' %pin,'wb',0)

        direction.write('out' if mode == OUTPUT else 'in')

        direction.close()

    except IOError as e:

        print('Error: %d - %s' %(e.errno,e.strerror))



def digitalWrite(pin,value):

    try:

        val = open('/sys/class/gpio/gpio%d/value' %pin,'wb',0)

        val.write(str(value))

        val.close()

    except IOError as e:

        print('Error: %d - %s' %(e.errno,e.strerror))



def analogRead(pin):

    filePath = '/sys/devices/platform/c0000000.soc/c0053000.adc/iio:device0/in_voltage%d_raw' %pin

    try:

        file = open(filePath,"rb",0)

        value = file.read()

        file.close()

        return int(value)

    except IOError as e:

        print('Error: %d - %s' %(e.errno, e.strerror))

        return 0



LEDpin = 128

LightSensor = 0



export(LEDpin)

pinMode(LEDpin,OUTPUT)



try:

while True:

raw = analogRead(LightSensor)

volt = raw * 1.8/4095

print("Raw value: %d" %raw)

print("Voltage: %0.2f" %volt)

if raw <= 1024:

digitalWrite(LEDpin, HIGH)

else:

digitalWrite(LEDpin, LOW)

sleep(0.5)

except KeyboardInterrupt:

unexport(LEDpin)

print("Stop!!!")
